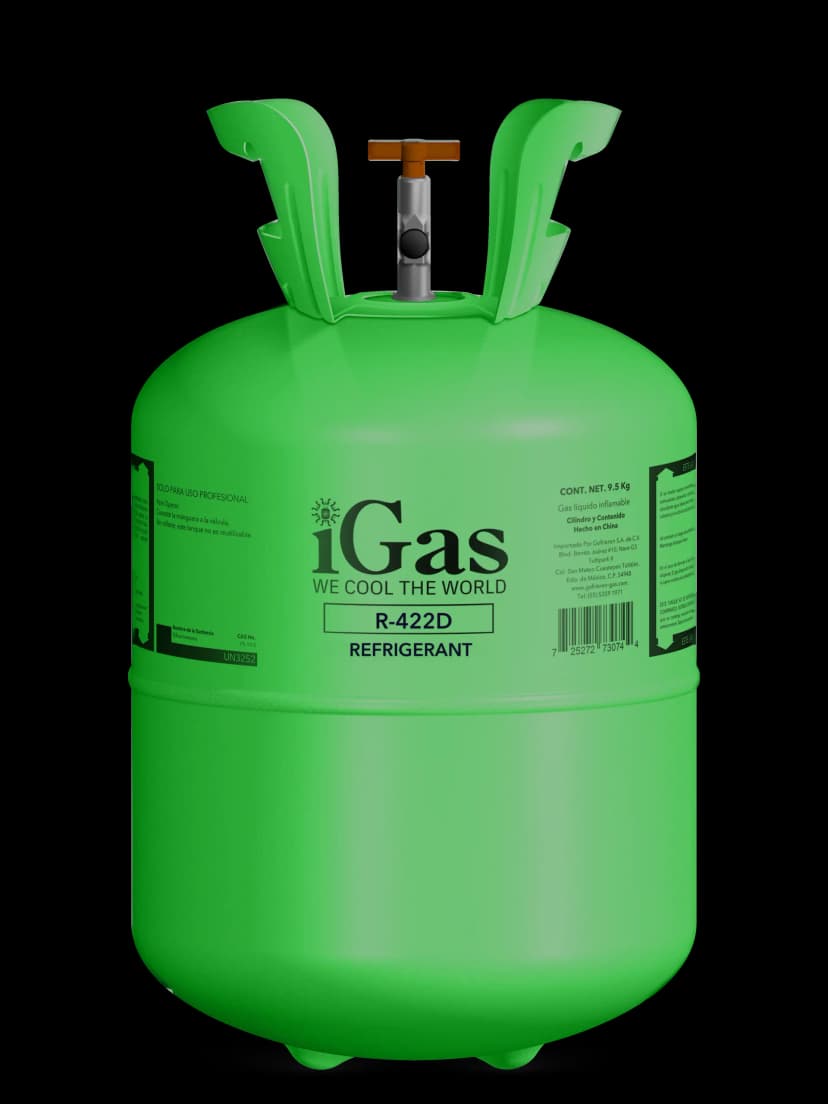

R-422D

R-422D is a non-ozone-depleting, multi-purpose refrigerant that works in existing low and medium temperature direct expansion refrigeration applications, including commercial supermarket systems.

Safety Data Sheet Pressure Temp Chart

What is R-422D?

R-422D (a blend of R-125, R-134a, and R-600a) is a hydrofluorocarbon (HFC) refrigerant designed as a replacement for R-22 in existing refrigeration and air conditioning systems. Unlike R-422B, which is better suited for smaller residential and light commercial systems, R-422D is particularly optimized for medium and low-temperature commercial and industrial applications. It offers compatibility with both traditional mineral oil (MO) and alkylbenzene (AB) lubricants, simplifying retrofits by minimizing the need for major system modifications

R-422D operates at pressures comparable to R-22, delivering reliable performance and efficiency for larger-scale refrigeration systems transitioning away from ozone-depleting refrigerants. While it has a higher global warming potential (GWP) than newer alternatives, it remains a practical and cost-effective solution for industrial cooling systems, cold storage, food processing facilities, and similar demanding environments where advanced options may not be viable. Classified as non-toxic and non-flammable under the A1 safety rating, R-422D provides a robust option for applications requiring durability and efficiency under challenging conditions.

Important Note

R-422D should only be handled by certified HVAC professionals to ensure safe and effective use. Proper retrofitting of systems originally designed for R-22 requires specialized knowledge and adherence to manufacturer guidelines. Care must be taken to prevent leaks, maintain efficiency, and ensure system reliability. Always follow safety protocols and environmental regulations when working with R-422D.

Key Properties of R-422D

Low Boiling Point

Boils at (1 atm, °F): -45.8, making it efficient for medium and low-temperature commercial and industrial applications.

Low Pressure Operation

Operates at slightly lower pressures than R-22, requiring similar but retrofitted equipment or none at all.

Similar Energy Efficiency

Offers similar energy efficiency compared to older refrigerants like R-22, but 0 ODP.

Zero Ozone Depletion

Has an Ozone Depletion Potential (ODP) of 0, making it safer for the environment.

Global Warming Potential

Has a GWP of 2730, which is significant but lower than some alternatives.

Non-Flammable

Classified as A1 (lowest toxicity, no flame propagation) by ASHRAE.

Technical Specifications

Applications and Usage

Residential Systems

Limited use in residential settings, primarily for retrofitted air conditioning systems originally designed for R-22
Small-scale cooling units requiring medium or low-temperature performance

Commercial Applications

Medium and low-temperature refrigeration systems in supermarkets and convenience stores
Packaged rooftop HVAC units retrofitted from R-22
Beverage display coolers, freezers, and ice machines in commercial settings

Industrial Applications

Large-scale cold storage facilities retrofitted from R-22 systems
Food processing refrigeration units requiring reliable, medium, and low-temperature cooling
Industrial cooling systems used in manufacturing and logistics sectors

Specialized Uses

Medical-grade refrigeration equipment retrofitted from R-22 systems
Laboratory cooling systems requiring a non-ozone-depleting alternative to R-22
